Product Description

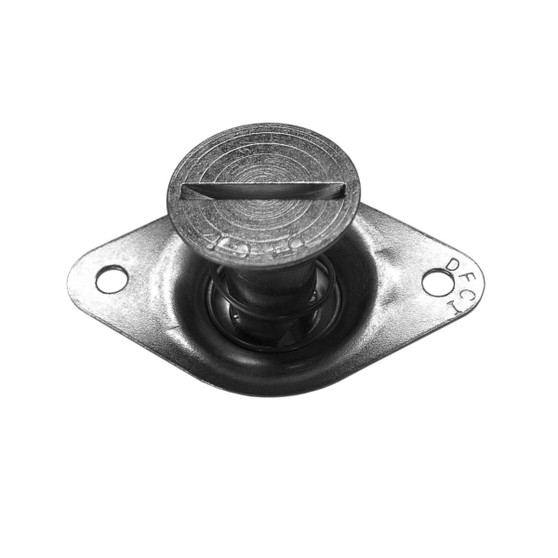

- Dzus EHF5 stud assemblies are sold with stud and ejector spring secured in the mounting plate
- The plate is riveted to the top of the removable panel, providing an advantage on weak materials (fiberglass) by spreading stud tensile load.
- Stud is steel heat treated, zinc plated and .50" in height
- Plating is zinc with clear chrome finish
- For total material thickness .250" - .274" use spring S5A-250
- For total material thickness .300" - .324" use spring S5A-200
